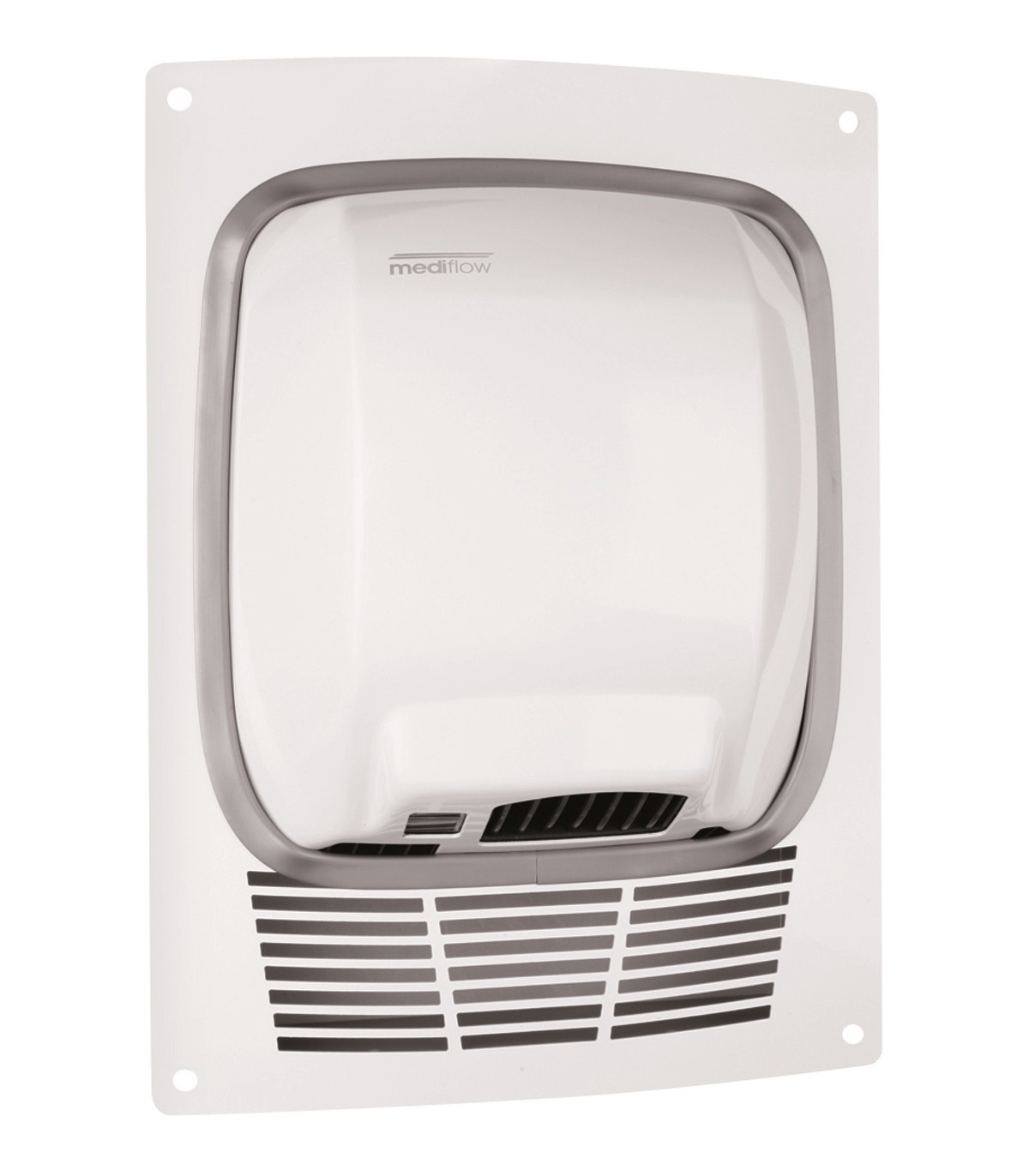

Kit for recessed Mediflow hand dryer, white finish (hand dryer not included).
• Kit for recessed Mediflow hand dryer (hand dryer not included).
• The kit for recessed Mediflow makes the Mediflow hand dryer suitable for the compliance of the ADAAG norm (US) – that limits to 4 inches (100mm) the horizontal projection of the devices installed in bathrooms for public use-, bestowing on that hand dryer the quality of “specific for the disabled”.
• Maximum robustness and vandal-proof.
• Excellent integration and aesthetical level.
• Cabinet made of electro-zinced iron, 1.5 mm thick, with 16 screw holes of Ø 6 mm for wall mounting. It includes 4 M5 bolts welded on top of the base plate for the fitting of the Mediflow hand dryer.
• Frame 1.5 mm thick, made of steel white finish, with 4 screw holes of Ø 9 mm for mounting on the wall.
• Gasket made of grey rubber, offers a reinforcing outside protection that minimizes vibrations and noise.
• Nuts and bolts for fitting the dryer to the kit and the frame to the wall includes: 4 nuts DIN 934 M5, 4 washers DIN 125 M5, 4 stainless steel screws DIN 7981 32 x 5,5 mm and 4 wall plugs F8.
NOTE: nuts and bolts for the mounting of the cabinet to the wall are not included. Use of stainless steel nuts and bolts is recommended.
